Hypro 2500 series Hydraulic Motor Seal Kit 3430-0748

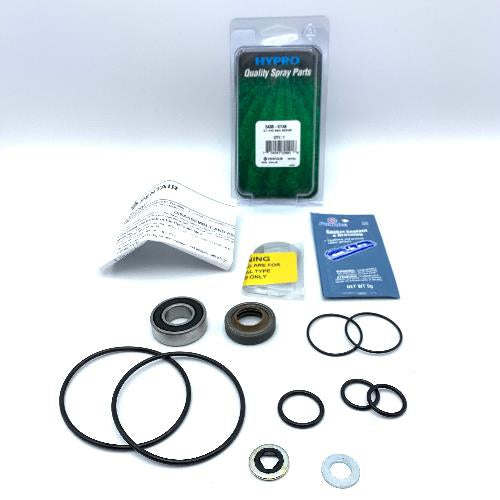

Kit Includes:

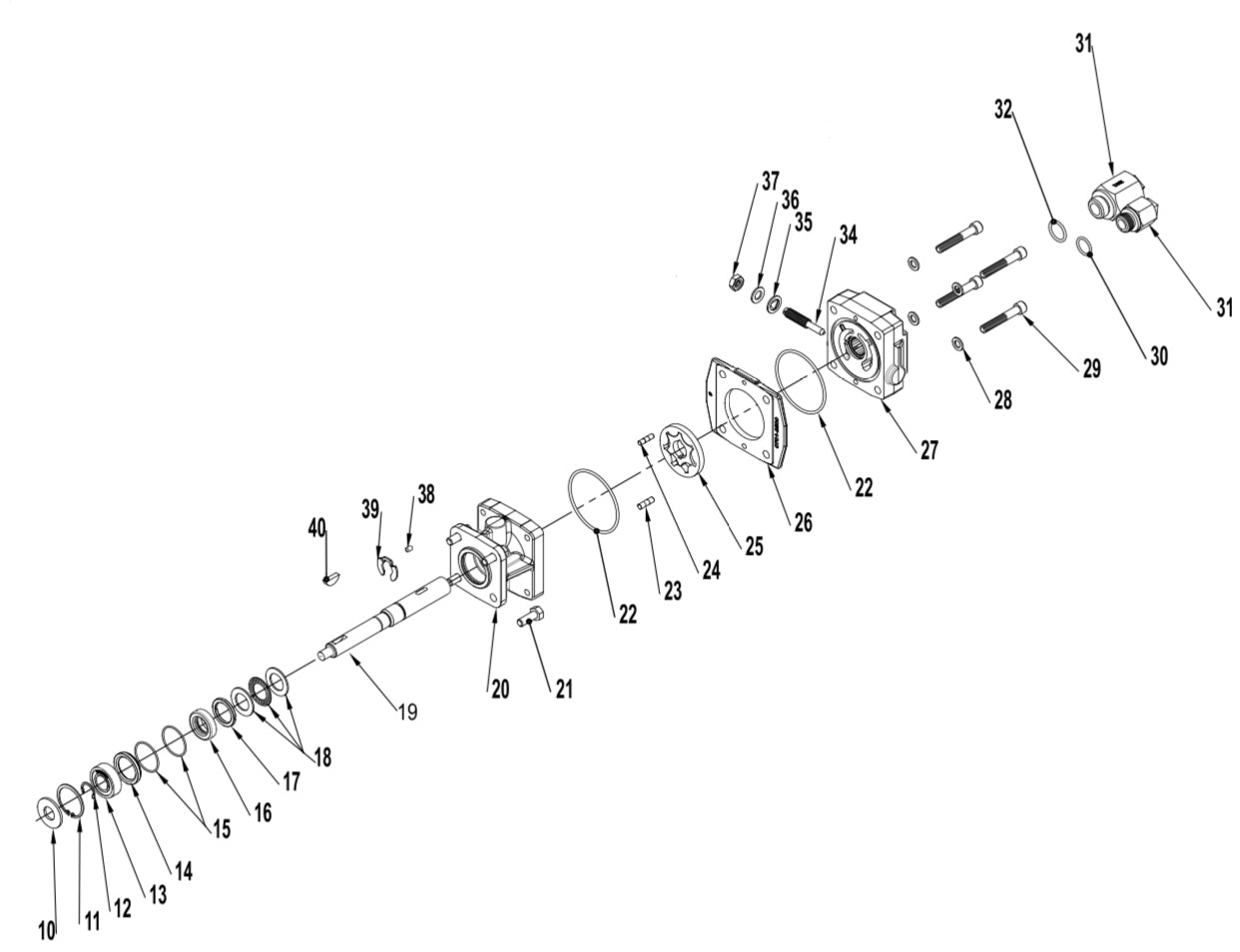

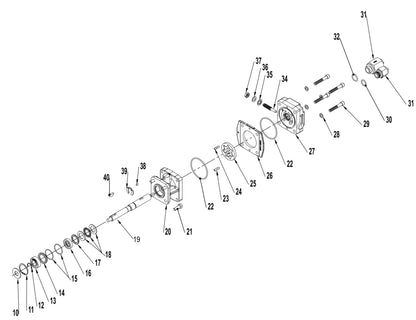

Contains: One each ball bearing (Ref. 13) (see Pictures for parts breakdown)

Motor shaft seal (Ref. 16)

Thread seal gasket (Ref. 35)

Two cartridge o-rings (Ref.15)

Washer (Ref 36)

Two each motor housing o-rings (Ref. 22)

Port adapter o-rings (Ref. 30 & 32)

Repair Kit for Models:

• 9202C
• 9203C
• 9206C
• 9262C-C
• 9263C-C
• 9302C
• 9303C
• 9306C
• 9402C
• 9403C
• 3430-0332

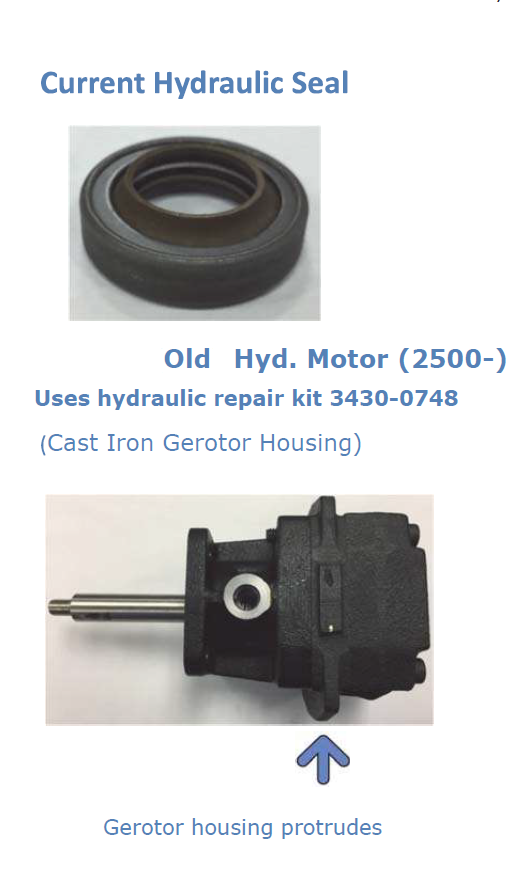

suits older 2500 model wing type hydraulic motor
