Annovi Reverberi Diaphragm Pump & Gearbox- AR135-CR
Annovi Reverberi Diaphragm Pump & Gearbox- AR135-CR
No reviews
Regular price
$2,413.59 AUD
Regular price
Sale price
$2,413.59 AUD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

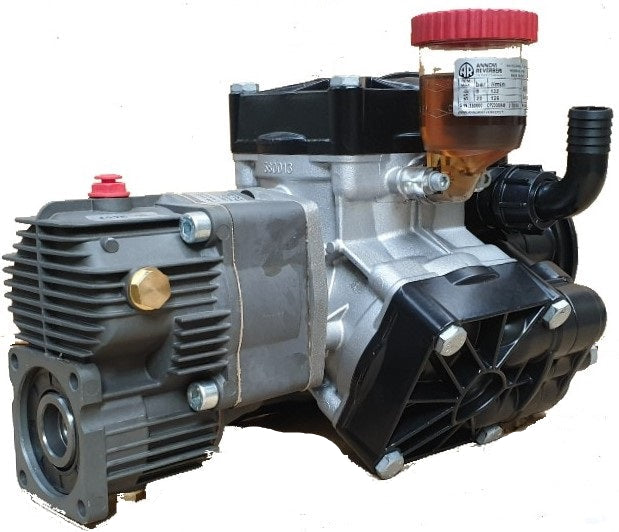

Annovi Reverberi AR135 diaphragm pump and 6:1 reduction gearbox for 3/4 inch shaft engine (2 x pieces: AR135 pump and 1671 gearbox - assembled )
- Alternating volumetric pump with three semi-hydraulic diaphragms with air chamber for use in agriculture in low pressure
- Parts in contact with pumped liquids in plastic-coated aluminium and stainless steel
- Diaphragms in Blueflex,
- Seals in NBR
- Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
- Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm
- New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
- Spherical sector profile valves for lower flow resistance and improved volumetric efficiency
- Rugged feet secured to pump casing
Triple Diaphragm Pump.
Ideal for booms up to 18 meters.
Open flow of 128L/min.
Maximum pressure of 20 bar.
**FREE DELIVERY AUSTRALIA WIDE**
