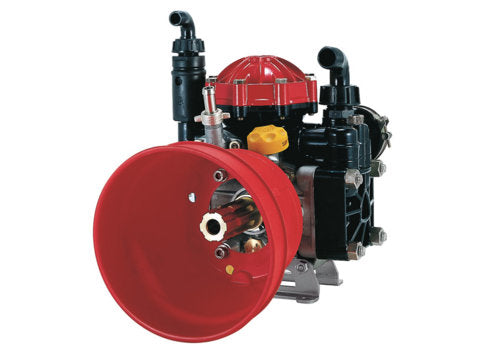

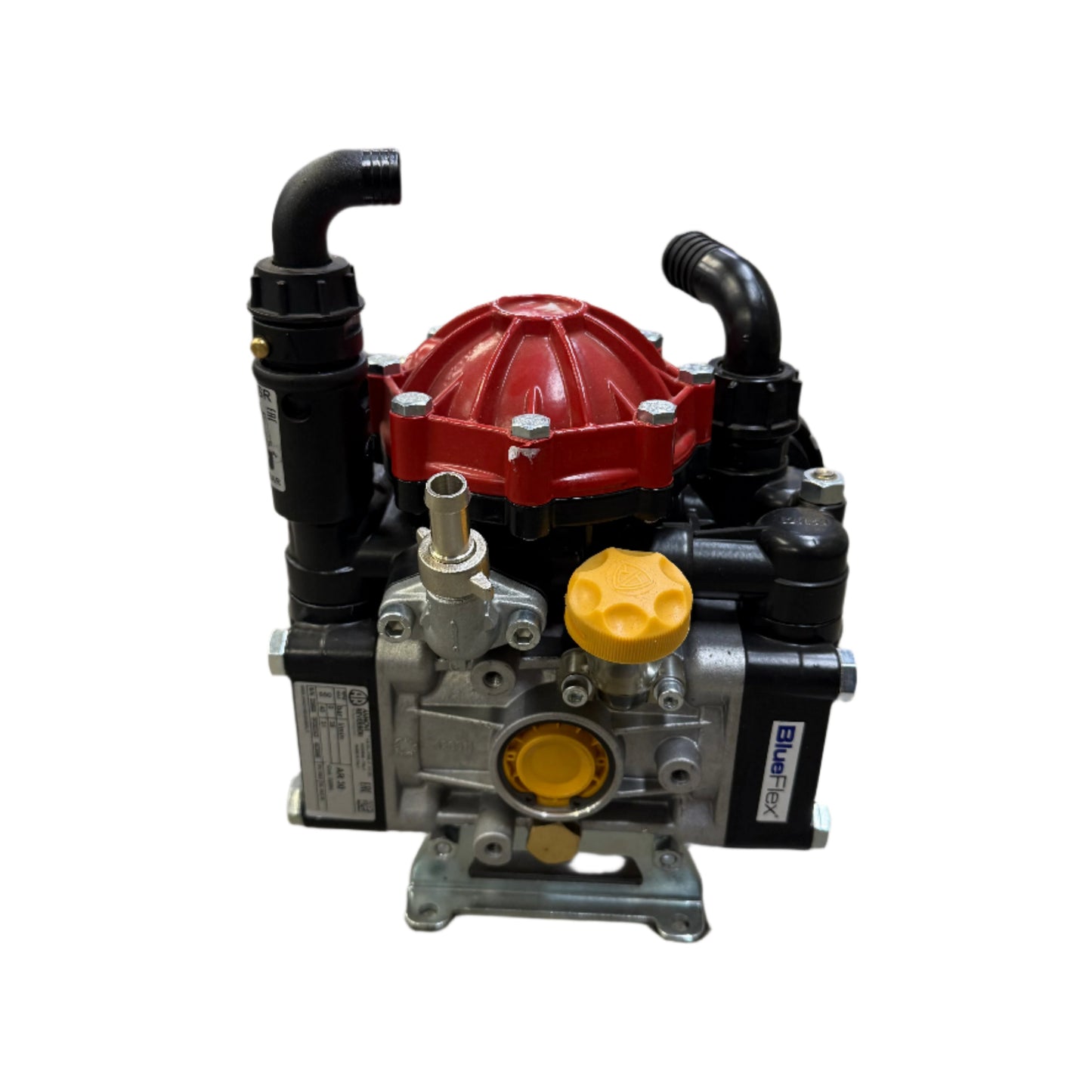

Annovi Reverberi Diaphragm Pump - AR30-C

Semi-hydraulic two-diaphragm pump, for use in the semi-professional agricultural sectors.

Used for for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards.

Parts in contact with pumped liquids in Rilsan-coated aluminium, and AISI 303/304.

Diaphragms in NBR. Seals in NBR. Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.

Fitted with air-hydraulic damper for smoother operation and less hammer effect in the delivery circuit.

Oil drainage stopper. Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm.

New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions.

Spherical sector profile valves for lower flow resistance and improved volumetric efficiency. Mass-produced safety valve and cardan protection.

Metal fasteners with galvanised finish.

Twin Diaphragm Pump.

Ideal for spot spraying units.

Open flow of 36L/min.

Maximum pressure of 40 bar.

Maximum RPM of 550.

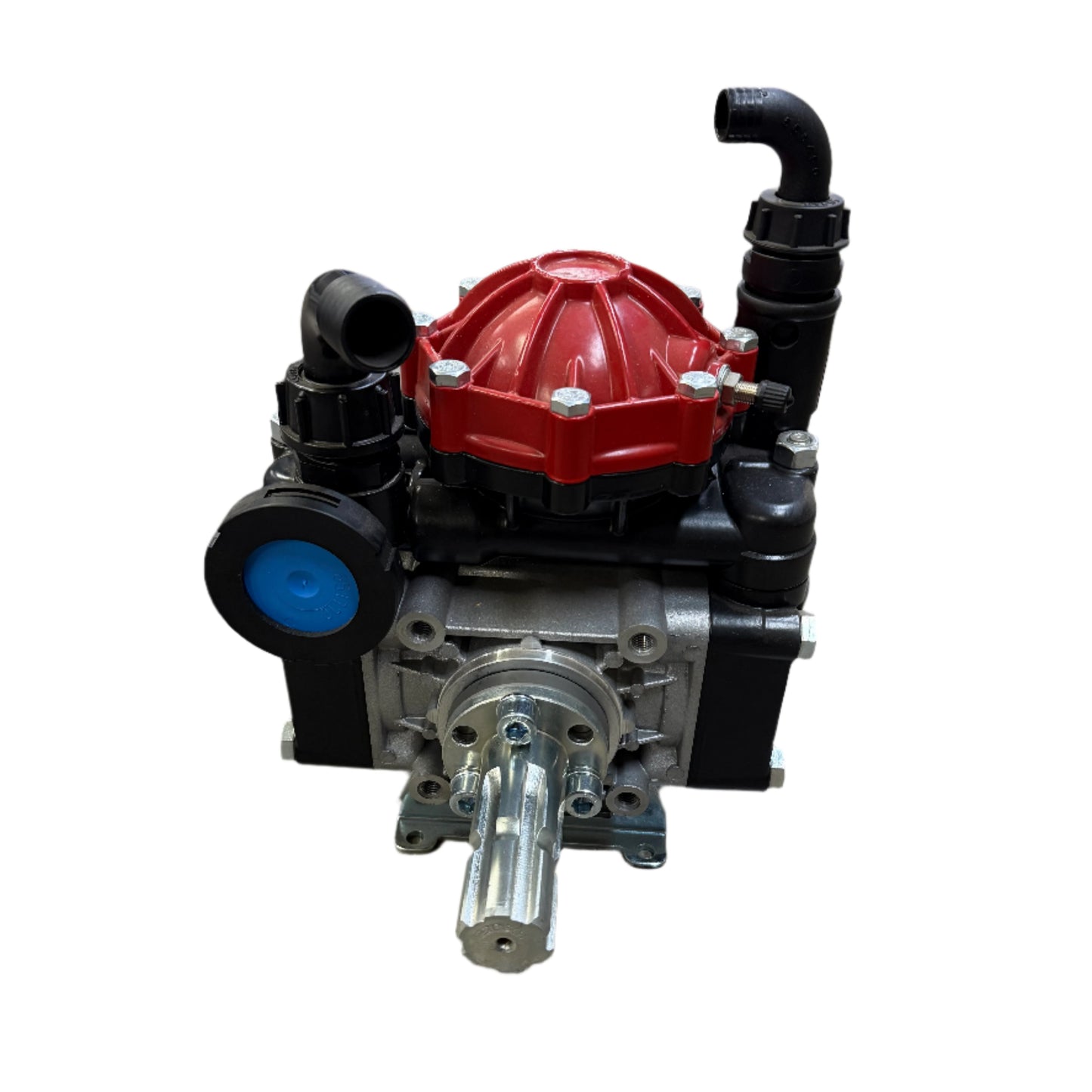

1-3/8 6 spline male shaft

HP required 2.9
